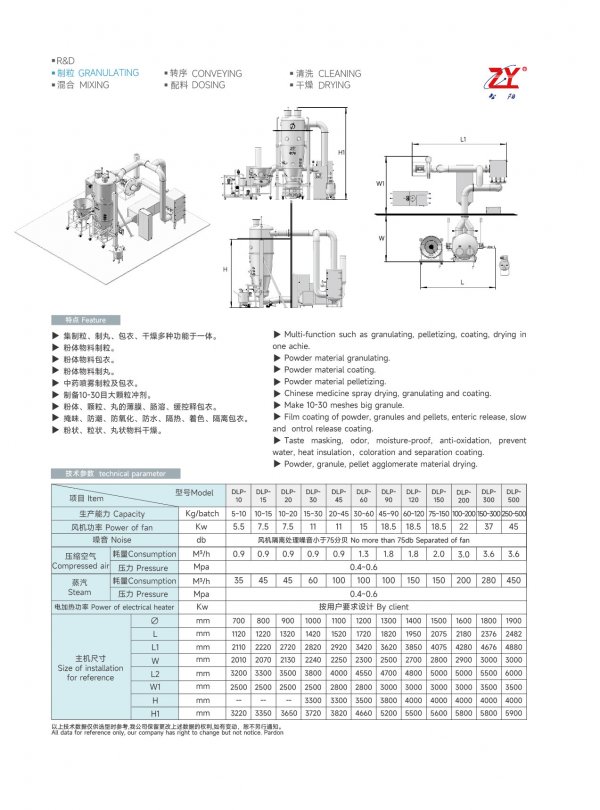

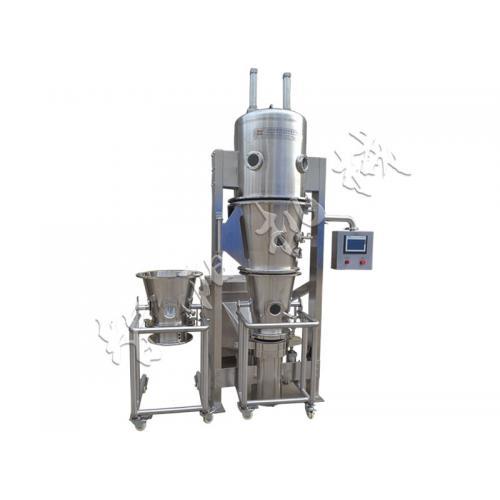

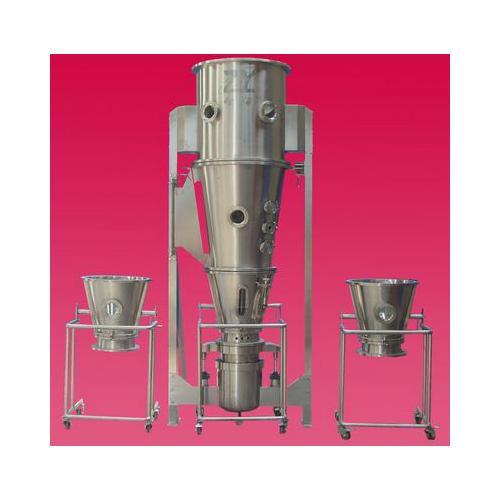

DLP多功能流化制粒包衣机
DLP fluid-bed granulator /pelletizer coater
★设备特点：Features of equipment
※集制粒、制丸、包衣多种功能于一体。
※粉体物料制粒。
※粉体物料包衣。
※粉体物料制丸。
※中药喷雾制粒及包衣。
※制备 10-30 目大颗粒冲剂。
※粉体、颗粒、丸的薄膜、肠溶、缓控释包衣。
※掩味、防潮、防氧化、防水、防热、着色、隔离包衣。
※粉状、粒状、团块状物料干燥。
※Multi-function such as granulating, pelleting, coating in one machine.
※Powder material granulating.
※Powder material coating.
※Powder material pelleting.
※Chinese medicine spray drying, granulating and coating.
※Make 10-30 meshes big granule.
※Film coating of Powder, granules and pellets, enteric release, slow and control release coating.
※Taste masking, odor, moistureproof, antioxidation, prevent water, heat insulation, coloration and separation coating
★※Powder, granule, agglomerate material drying.
★应用概述 :General of applications
※DLP 多功能制粒包衣实验机是集喷雾干燥 -- 制粒 -- 离心制丸 -- 流化包衣干燥于一体的多功能设备。该机兼容多种工艺操作。特别适用于医药、食品、化工等行业多品种、多剂型制粒、制丸及包衣。
※DLP Granulator/Coater/Pelleter is multi-function equipment integrated spray drying-granulating-centrifugal spray coating-fluid coating-drying in one body. The machine combined various process operations. Particularly it is suitable for granulating, pelleting and coating of various varieties in pharmaceutical industry, foodstuff industry and chemical industry,

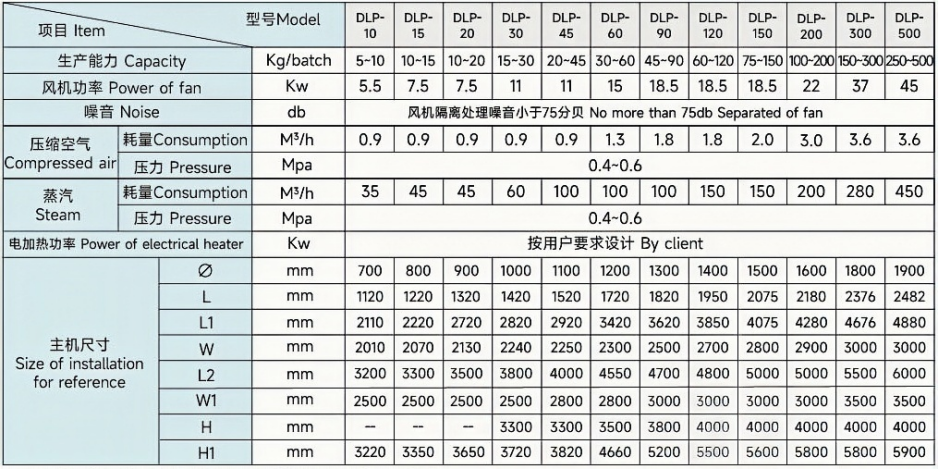

★技术参数:Technical Data
|
规格Specification
项目Item
|
10
|
15
|
20
|
30
|
45
|
60
|
90
|
120
|
|
投料量Capacity
|
Kg/批kg/batch
|
2.5-10
|
3-15
|
5-20
|
7.5-30
|
10-45
|
15-60
|
20-90
|
30-120
|
|
原料容器直径Dir of container
|
Mm
|
700
|
800
|
900
|
1000
|
1100
|
1200
|
1400
|
1500
|
|
风机功率Power of fan
|
Kw
|
7.5
|
11
|
11
|
11
|
15
|
15
|
18.5
|
18.5
|
|
噪音Noise
|
db
|
风机隔离处理噪音小于75分贝No more than 75db Separated of fan
|
|
压缩空气
Compressed air
|
压强 Pressure
|
Mpa
|
0.6
|
|
耗量Consumption
|
M3/min
|
0.9
|
0.9
|
0.9
|
0.9
|
0.9
|
0.9
|
1.6
|
1.1
|
|
蒸汽
Steam
|
压强Pressure
|
Mpa
|
0.4-0.6
|
|
耗量Consumption
|
Kg/h
|
35
|
42
|
47
|
60
|
140
|
160
|
160
|
240
|
|
电加热功率Power of electrical heater
|
Kw
|
按用户要求设计By client
|
|
主机尺寸
Size of installation for reference
|
H1(mm)
|
2960
|
3350
|
3650
|
3720
|
3720
|
3850
|
3950
|
4190
|
|
H2(mm)
|
3320
|
3820
|
4120
|
4190
|
4190
|
4320
|
4420
|
4660
|
|
H3(mm)
|
2770
|
3130
|
3430
|
3500
|
3500
|
3630
|
3720
|
3975
|
|
B1(mm)
|
1160
|
1460
|
1560
|
1600
|
1760
|
1860
|
1960
|
2060
|
|
B2(mm)
|
1860
|
2460
|
2660
|
2860
|
3060
|
3260
|
4360
|
3660
|
|
L(mm)
|
1250
|
1400
|
1450
|
1500
|
1550
|
1600
|
1650
|
1700
|
|
￠
|
180
|
250
|
250
|
280
|
280
|
280
|
280
|
315
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
所有参数仅作参考 , 视物料情况 , 本公司拥有变更权利 , 并不另行通知 .
*All datas are used for reference only. According to the condition of material, our factory has the right change but not notice, pardon!
