YK-160摇摆式颗粒机
YK-160 Ocillating granulator
★设备特点：Features of equipment
※YK-160 摇摆颗粒机是我厂参照国外同类机型并结合国内制药企业特点研制开发的新一代制粒，整粒设备。与国内普通摇摆颗粒机相比具有占地小，整机结构设计紧凑，简单，设备操作维修简单方便，易拆卸清洗，无死角等优点，符合 GMP 要求。本机主要由摆辊部分，机体部分，传动部分，旋紧装置等构成。
※YK-160 Ocillating Granulating Separator is a new product developed by our factory with due reference to similar models produced abroad as well as careful consideration to the characteristics of domestic pharmaceutics enterprises. Compared with the pendulum convenient for operation and maintenance, easy for disassembly and cleaning, and free of blind corner, and complies with GMP requirements. This machine is mainly composed of pendular roller, main body, transmission system, and tightening device of sieve
※YK160 摇摆传动部分： The Transmission Part
※结构紧凑，功率利用率高，传动力大 Compact construction, high using ratio and drive force.
※YK160 推车式整粒机 :Trolly-type Granulator
※本机与 HZ 系列（高效湿法造粒机）和 FLB （ PGL ）系列（沸腾制粒干燥机）组成联合机组，形成管道化生产，减少二次污染，生产效率高。
※The machine is combined with HZ series (efficient hydro-granulator) and FLB (Fluidized dry granulator). All of them form the pipeline production, reducing the second pollution.

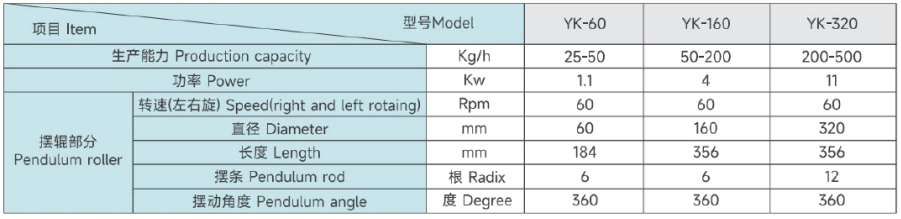

★技术参数:Technical Data
|
生产能力(kg/batch) Production Capacity
|
60 -220kg /h
|
|
电源 Electric source
|
三相 3-phase AC380v
|
|
频率 Frequency
|
50Hz
|
|
电机功率 Motor power
|
2.2k
|
|
摆辊部分 Pendulum Roller
|
转速（左右旋） Speed (right-and-left rotating)
|
60rpm
|
|
直径 Diameter
|
160mm
|
|
长度 Length
|
356mm
|
|
摆条 Pendulum Rod
|
七根 Seven
|
|
摆动角度 Pendulum Angle
|
360℃
|
所有参数仅作参考 , 视物料情况 , 本公司拥有变更权利 , 并不另行通知 .
*All Data are used for reference only. According to the condition of material, our factory has the right change but not notice, pardon!
