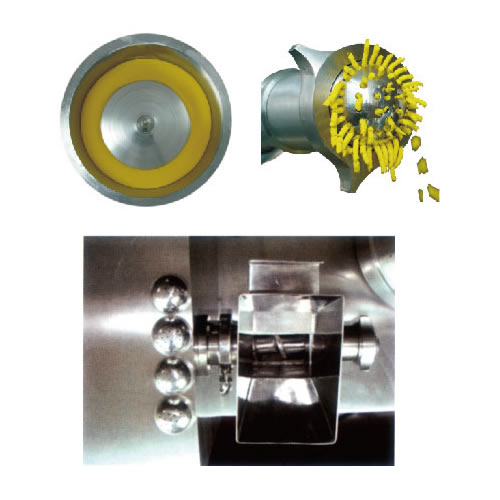

JW 挤条---抛园微丸机组
JW EXTRUDE-SPHEROIDIZING PELLETS SYSTEM
★设备特点：Features of equipment
※挤条---抛园在一台机器上完成.
※抛丸时,可洒入干粉,不易粘连.
※成丸表面致密,利于包衣.
※成丸粒径均匀,真球度高.
※Extruding--spheroidizing in one machine.
※NO adhesive during spheroidizing as the power is acceded.
※The pellet has compact surface and easy for coating.
The size distribution of pellet is narrow and high round.
★应用概述 :General of applications
※粉体与粘结剂湿法混合--挤条--离心抛园,完成制丸.
※The process of machine is powder and dinder mixing to wet material, then to spheroidizing on the centrifugal dish,the pellsts can be got.

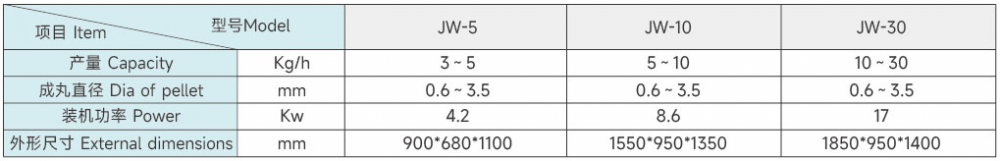

★技术参数： Technical date
|
规格 Specification
|
产量 (kg/h)
Capacity
|
成丸直径(mm)
Dia of pellet
|
装机功率(kw)
Powder
|
外形尺寸(mm)
Over size
|
|
5
|
3-5
|
0.6-3.5
|
4.2
|
900*680*1100
|
|
10
|
5-10
|
0.6-3.5
|
8.6
|
1550*950*1350
|
|
30
|
10-30
|
0.6-3.5
|
17
|
1850*950*1400
|
所有尺寸仅作参考 , 视物料情况 , 本公司拥有变更权利 , 并不另行通知 .
*All sizes are used for reference only. According to the condition of material, our factory has the right change but not notice, pardon!
