FG 沸腾干燥机
FG FLUID-BED DRYER
★应用概述 :General of applications
机适用于粉末或颗粒的干燥，速度为一般烘箱的 10-20 倍。
The machine is suitable for drying powder or granule. In
general, its speed is 10 ～ 20 times of oven.
★设备特点：Features of equipment
本设备混合、干燥过程在同一设备内完成。质热传递快，在封闭负压下操作，无粉尘飞扬，设备无死角，清洗彻底，无交叉污染，加热可采用蒸汽或电热。
采用抗静电过滤材料，滤袋升降以气动方式操作，操作安全，满足 GMP 卫生规范要求。
The mixing and drying of the equipment can be finished in same equipment. The transfer of mass and heat is quick. Because of operation at negative pressure, there is no flying dust. The equipment has no dead corner. It can clean is fully and without cross pollution. Its heating may use steam, or electric heater. It adopts antistatic filtering material. The lift of filtering bag adopts pneumatic operaton. So the operation is safe. It meets the requirements of GMP

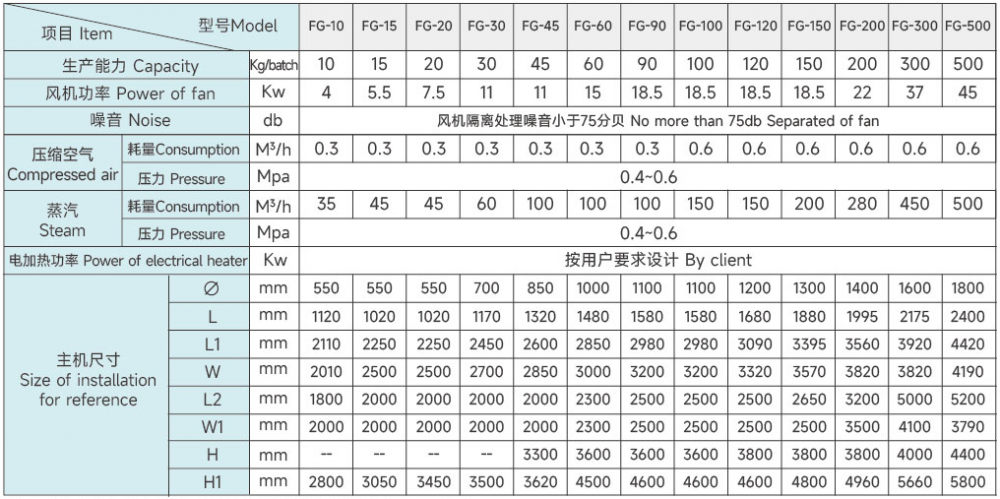

★技术参数:Technical Data
|
格 Specification
|
30
|
60
|
90
|
120
|
150
|
200
|
300
|
500
|
800-1000
|
|
原料容器（ L ） Volume of container
|
100
|
220
|
300
|
420
|
500
|
670
|
1000
|
1500
|
按客户要求设计
By URS
|
|
生产能力（ kg/ batch ） capacity
|
30
|
60
|
90
|
120
|
150
|
200
|
300
|
500
|
|
压强pressure Mpa
|
0.4-0.6
|
|
蒸汽耗量（ kg/h ） Consumption of steam
|
70
|
140
|
169
|
211
|
241
|
282
|
366
|
465
|
|
压强pressure Mpa
|
|
|
|
0.6
|
|
|
|
|
|
压缩空气量（ m 3 /min ） Consumption of compressive air
|
0.3
|
0.6
|
0.6
|
0.6
|
0.6
|
0.9
|
0.9
|
1.1
|
|
风机功率（ KW ） Power of fan
|
5.5
|
11
|
15
|
18.5
|
22
|
22
|
30
|
45
|
|
进风温度（ °C ） Temperature
|
常温～ 120°C 自动调节 normal temperature ～ 120 °C automatism adjust
|
|
物料收率（ % ） Yield of material
|
>99
|
|
终湿含量（ % ） Content of final moisture
|
可达 0.2 can dry to 0.2
|
|
噪音 dB Noise
|
风机隔离处理不大于 75 分贝 No more than 75dB Separated of fan
|
|
主机安装参考尺寸 Installation size for reference
|
请参考 FL 机型 The same as FL model
|
|
所有参数仅作参考 , 视物料情况 , 本公司拥有变更权利 , 并不另行通知 .
*All sizes are used for reference only. According to the condition of material, our factory has the right change but not notice, pardon!
