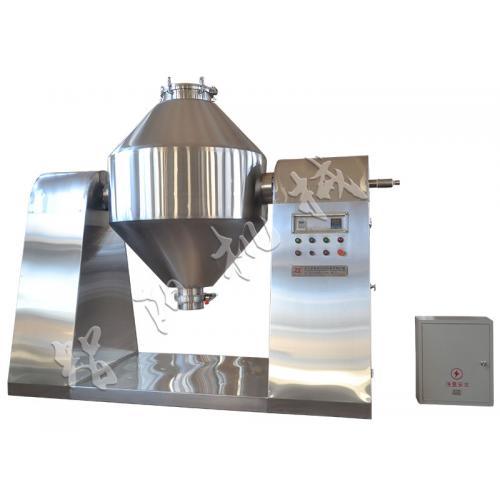

SZG型双锥回转真空干燥机
SZG TWINS TAPE ROTATING VACCUM DRYER
★用途概述 ：General of
※不能承受高温的物料；
※ 容易氧化的物料；
※对结晶体不允许破坏的物料；
※ 回收干燥时排除的蒸汽的物料；
※ 强烈刺激有毒物料。
※ Material that cannot undertake high temperature.
※ Material that is easy to oxidize
※ Material that do not permit to destruct
※ To recover material with residual volatile
※ Material with vigorous irritative and toxicity
★设备特点 ： Features of equipment
※本机将粉末或粒状物料通过真空输送或人工加料到双锥容器中，随着容器的不断旋转，物料在容器中进行复杂的撞击运动，达到均匀的混合。
※本机节约能源、操作方便、劳动强度低、工作效率较高。
※ The machine can feed powder or granule into twin cone container through vacuum transmission or manual. With continuous rotation of container, material will make complex impacting motion in the container and reach to uniform mixing.
※ Energy saving, easy to operate, low labor strength, high work efficiency.

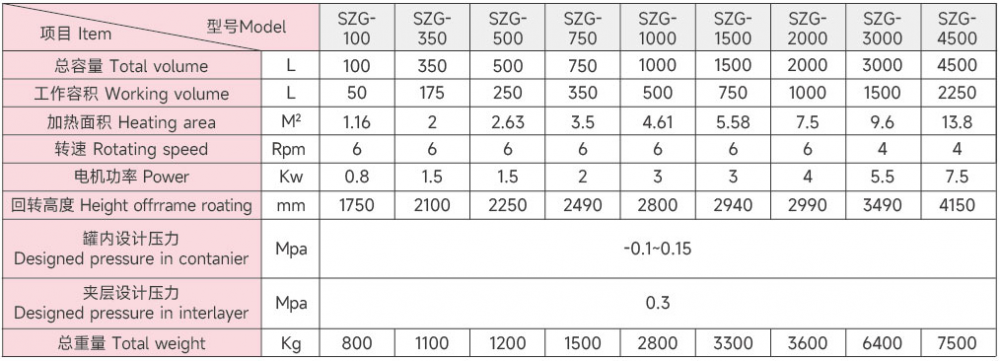

★技术参数:Technical Data
|
项目 item
|
机型 specification
|
|
名称 Name
|
单位 Unit
|
100
|
350
|
500
|
750
|
1000
|
1500
|
2000
|
3000
|
4500
|
|
总容量 Total volume
|
L
|
100
|
350
|
500
|
750
|
1000
|
1500
|
2000
|
3000
|
4500
|
|
工作容积 Working volume
|
L
|
50
|
175
|
250
|
375
|
500
|
750
|
1000
|
1500
|
2250
|
|
加热面积 Heating area
|
㎡
|
1.16
|
2
|
2.63
|
3.5
|
4.61
|
5.58
|
7.5
|
9.6
|
13.8
|
|
转速 Rotating speed
|
rpm
|
6
|
6
|
6
|
6
|
6
|
6
|
6
|
4
|
4
|
|
功率 Power
|
KW
|
0.8
|
1.5
|
1.5
|
2
|
3
|
3
|
4
|
5.5
|
7.5
|
|
回转高度 Height of frame
rotating
|
mm
|
1750
|
2100
|
2250
|
2490
|
2800
|
2940
|
2990
|
3490
|
4150
|
|
罐内设计压力 Designed pressure in container
|
MPa
|
-0.1--0.15
|
|
夹层设计压力Designed pressure in interlayer
|
MPa
|
0.3
|
|
总重量 Total weight
|
kg
|
800
|
1100
|
1200
|
1500
|
2800
|
3300
|
3600
|
6400
|
7500
|
所有参数仅作参考 , 视物料情况 , 本公司拥有变更权利 , 并不另行通知 .
*All datas are used for reference only. According to the condition of material, our factory has the right change but not notice, pardon!
