LPG型高速离心喷雾干燥机
LPG HIGH SPEED CENTRIFUGAL SPRAYING DRYER
★用途概述 ：General of application
※喷雾干燥是液体工艺成形和干燥工业中***广泛应用的工艺。***适用于从溶液、乳液、悬浮液和可泵性糊状液体原料中生成粉状、颗粒状或块状固体产品。因此，当成品的颗粒大小分布、残留水分含量、堆积密度和颗粒形状必须符合精确的标准时，喷雾干燥是一道十分理想的工艺。
※Spray drying is a wide applied process in liquid process shaping and drying industry. Particularly it is suitable for producing powder, granule or block solid product from solution, emulsion, suspending liquid and pumped paste liquid. Therefore when the distribution of granule size, final moisture, bulk density, granule shape of finished product must be conformed to accuracy standard, the spray drying is an ideal process.
★设备特点： Features of equipment
※干燥速度快，料液经雾化后表面积大大增加，在热 风气流中，瞬时就可蒸发 95%-98% 的水分，完成干燥 时间仅需数秒钟，特别适用于热敏性物料的干燥。
※产品具有良好的均匀度、流动性或溶解性，产品纯度高，质量好。
※生产过程简化，操作控制方便。对于湿含量 40- 60% （特殊物料可达 90% ）的液体能一次干燥成粉粒产 品，干燥后不需粉碎和筛选，减少生产工序，提高产 品纯度。对产品粒径，松密度、水份，在一定范围内可通过改变操作条件进行调整，控制和管理都很方便。
※ Quick drying speed, the surface area of material liquid through atomizing is increased greatly. In hot air stream, 95% to 98% of moisture can be evaporated at the moment. Especially suit for drying thermal sensitive material.
※The ../../product made by the machine has good uniformity, fluidity, solubility, high pure, and high quality.
※The ../../productive ../../process is simple and the operation, control is very convenient. For liquid containing 0 ～ 60% of damp(for special material, may be 90%), it can be dried to powder product through drying one time. After dried, it is not necessary to crush, sieve. So it reduces productive procedure and raises the purity of product. For the size, bulk density and moisture of product can be adjusted within certain scope through exchanging operation condition. The control and management are very convenient

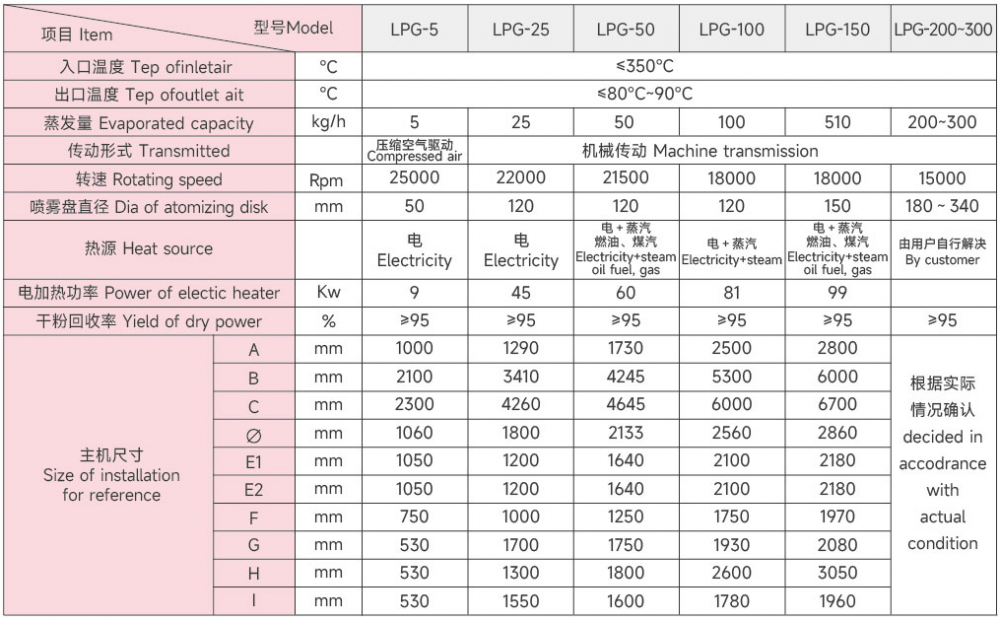

★技术参数:Technical Data
|
型号 specification
|
5
|
25
|
50
|
100
|
150
|
200-3000
|
|
入口温度 Tep of inlet air
|
≤ 350°C
|
|
出口温度 Tep of outlet air
|
80-90°C
|
|
蒸发量 (kg/h)
Evaporated capacity
|
5
|
25
|
50
|
100
|
150
|
200-3000
|
|
传动形式
Transmitted
|
压缩空气传动
Compressed air
|
机械传动 By machine
|
|
转速 (rpm)Rotating speed
|
25000
|
22000
|
21500
|
18000
|
18000
|
15000
|
|
喷雾盘直径 (mm)
ia. of atomizing disk
|
50
|
120
|
120
|
120
|
150
|
180-340
|
|
热源 Heat source
|
电 Electricity
|
电 Electricity
|
电 + 蒸汽、燃油、煤气Electricity+ steam, oil fuel, gas
|
电 + 蒸汽 Electricity+ steam
|
电 + 蒸汽燃油燃煤气 Electricity+ steam, oil fuel, gas
|
由用户自己解决
Solved by customer
|
|
电加热功率 (kw)
Powder of electric heater
|
9
|
45
|
60
|
81
|
99
|
|
|
干粉回收率 (%)
Yield of dry powder
|
≥ 95
|
≥ 95
|
≥ 95
|
≥ 95
|
≥ 95
|
≥ 95
|
|
安装尺寸参考
Installation Size for reference
|
A(mm)
|
1000
|
1290
|
1730
|
2500
|
2800
|
根据实际情况确定
Decided in accordance with actual condition
|
|
B(mm)
|
2100
|
3410
|
4245
|
5300
|
6000
|
|
C(mm)
|
2300
|
4260
|
4645
|
6000
|
6700
|
|
φ D(mm)
|
1060
|
1800
|
2133
|
2560
|
2860
|
|
E1(mm)
|
1050
|
1200
|
1640
|
2100
|
2180
|
|
E2(mm)
|
1050
|
1200
|
1640
|
2100
|
2180
|
|
F(mm)
|
750
|
1000
|
1250
|
1750
|
1970
|
|
G(mm)
|
530
|
1700
|
1750
|
1930
|
2080
|
|
H(mm)
|
530
|
1300
|
1800
|
2600
|
3050
|
|
I(mm)
|
530
|
1550
|
1600
|
1780
|
align=center
|
|
|
|
|
|
|
|
|
|
|
所有参数仅作参考 , 视物料情况 , 本公司拥有变更权利 , 并不另行通知 .
*All data are used for reference only. According to the condition of material, our factory has the right change but not notice, pardon!
