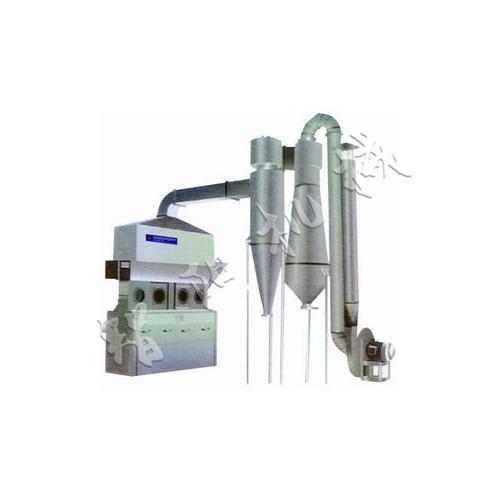

XF 沸腾干燥机
XF SERIES FLUID-BED DRYER
★用途概述 ：General of
它适用于粉粒状物料的干燥，如：医药药品中的原料药，压片颗粒药、中药冲剂、化工原料中的塑料树脂、柠檬酸和其它粉状、颗粒状物料的干燥除湿，还用于食品饮料冲剂，粮食加工、玉米胚芽、饲料等的干燥。物料的粒径一般为大可达６ mm ，***佳为 0.5-3mm 。
IIt is suitable for drying powder and granule material such as raw material in pharmaceutical industry, granule material for pressing tablet, infusion of Chinese medicine; in chemical industry, drying and damp removing of citric acid, other powder and granule shape materials. It can also be suitable for food, drinking infusion, etc; in grain process, drying maize embryo, feedstuff and so on. In general the maximum size of material may reach 6 mm. The best is 0.5 ～ 3 mm
★技术参数:Technical Data
|
型号
Specification
|
蒸发能力
（水）
（ Kg/h） vaporize capacity
|
风机功率
（ Kw ）
Power of fan
|
风压 pressure of fan
（ Mpa）
|
风量 quantum of wind
（ m 3 /h）
|
进风温度
(℃) T of air inlet
|
蒸气耗量
Steam consume
(kg/h)
|
外形尺寸 (m) Overall dimensions
Габариты
|
|
A 型
|
B 型
|
C 型
|
|
XF-10
|
10--15
|
7.5
|
5.5
|
1500
|
60-200
|
50
|
4X3.5X3.2
|
3.5X3.5X3
|
5X3.5X3.5
|
|
XF-20
|
20--25
|
7.5
|
5.8
|
2000
|
60-200
|
80
|
4.5X4X4.2
|
4X4X3.2
|
6X4X4.5
|
|
XF-30
|
30--40
|
15
|
7.1
|
3850
|
60-200
|
150
|
5X4X4.8
|
4X4X4.2
|
6X4X5
|
|
XF-50
|
50--80
|
30
|
8.5
|
7000
|
60-200
|
250
|
5X4.8X5
|
5X4.8X4.5
|
6X4.8X5
|
所有参数仅作参考 , 视物料情况 , 本公司拥有变更权利 , 并不另行通知 .
*All datas are used for reference only. According to the condition of material, our factory has the right change but not notice, pardon!
