30B型高效粉碎机
30B DUST CATCHER AND CRUSHING SET
★用途概述 ：General of application
※该机广泛适用于制药、食品、化工等行业各种物料的粉碎。
※本机由加料机构及粉碎机构组成。结构简单，清洗方便，与物料接触部分全部采用不锈钢制造，
※The machine is widely used in pharmaceutical, food, chemical, it can crush a lot kind of material
※The machine is made up of feeding material part and crush part. Its configuration is very briefness, all the part which contact the material are made of stainless steel.

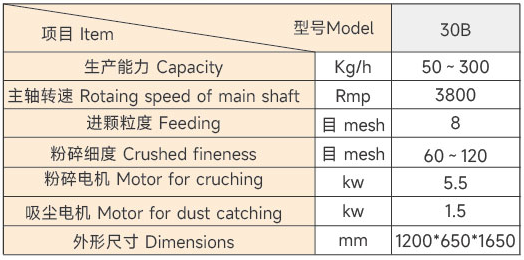

★技术参数:Technical Data
|
型号Specification
|
生产能力
Capacity(kg/h)
|
主轴转速
Revolution of
main shaft (rpm)
|
进料粒度（目）
Size of input
material
（ meshes ）
|
粉碎细度 ( 目 )
Crushed fineness
(meshes)
|
粉碎电机 (kw)
Motor for crushing
|
吸尘电机 (kw)
Motor for dust catching
|
外形尺寸 ( 长 X 宽 X高 )
overall dimensions(LXWXH)
(mm)
|
|
30B
|
50-300
|
3800
|
8
|
6-120
|
5.5
|
1.5
|
120X650X1650
|
所有参数仅作参考 , 视物料情况 , 本公司拥有变更权利 , 并不另行通知 .
*All datas are used for reference only. According to the condition of material, our factory has the right change but not notice, pardon!
