CH 槽型混合机
CH slot mixer
★设备特点：Features of equipment
本机是通过机械传动，使搅拌浆旋转，推动物料往复翻动，均匀混合，同时加入粘合剂，制成适合下道工序使用的湿材。
制湿材也可选用 GHL 高速混合制粒机。
By machinery transmission, the machine makes stirring oar rotate, drive material turning to-and –fro, after even mixing, add the binder, then makes them the required damp material which conforms to next process.
We can also choose GHL high-speed granulator for wet material.By machinery transmission, the machine makes stirring oar rotate, drive material turning to-and –fro, after even mixing, add the binder, then makes them the required damp material which conforms to next process.
We can also choose GHL high-speed granulator for wet material.

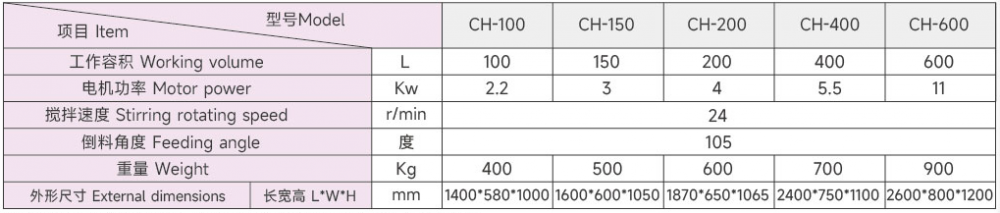

★技术参数:Technical Data
|
型号 Specification
|
CH-100
|
CH-150
|
CH-200
|
CH-400
|
CH-600
|
|
工作容积 Working volume (L )
|
100
|
150
|
200
|
400
|
600
|
|
电机功率 Motor power (Kw)
|
2.2
|
3
|
4
|
5.5
|
11
|
|
搅拌转速 Stirring rotating speed (r/min)
|
24
|
|
倒料角度 Feeding angle(degree)
|
105
|
105
|
105
|
105
|
105
|
|
重量 Weight （ kg ）
|
400
|
500
|
6
|
700
|
900
|
|
外形尺寸 Overall dimension （ mm ）
|
1400x580x1000
|
1600x600x1050
|
1870x650x1065
|
1400 x 750 x 1100
|
2600x 800 x 1200
|
所有参数仅作参考 , 视物料情况 , 本公司拥有变更权利 , 并不另行通知 .
*All data are used for reference only. According to the condition of material, our factory has the right change but not notice, pardon!
